Automatic Red Palm Sunflower Edible Essentail Cooking Oil Production Bottling Filling Packing Machine

Hits: 229

Details

Automatic Edible Oil Soybean Oil Sunflower Oil Sesame Oil Cooking Oil Palm Oil Filling Bottling and Packing Machine
*The oil bottle filling line is a high-tech product designed and developed by our company. It suits for different viscosity of water agent, semi-fluid and paste, it is widely used in the product filling of foodstuff, cosmetics, medicine, grease, daily chemical industry, detergent, pesticide and chemical industry.

Product Description

Automatic Red Palm Sunflower Edible Essentail Cooking Oil Production Bottling Filling Packing Machine

Technical parameter:
Model	LPH06	LPH08	LPH10	LPH12	LPH16	RPH24
Capacity(based on 1L)	1200bph	1800bph	2500bph	2500bph	4000bph	8000bph
Suitable bottle	Glass Bottle / PET Bottle
Bottle volume	0.1L~1L , 1L~2L,1L~3L ,1L~5L
Compressor air	0.3-0.7Mpa
Air consumption	0.37 m3/min
Application	perfume filling machine
Total power (KW)	1.2kw	1.6kw	1.8kw	2.5kw	2.8kw	3.2kw
Overall dimensions	3.2*1.2m	3.2*1.2m	3.2*1.2m	3.6*1.2m	3.6*1.2m	3.6*1.2m
Height	2.3m	2.5m	2.5m	2.5m	2.5m	2.6m
Weight(kg)	1200kg	2000kg	2200kg	2500kg	3000kg	3200kg

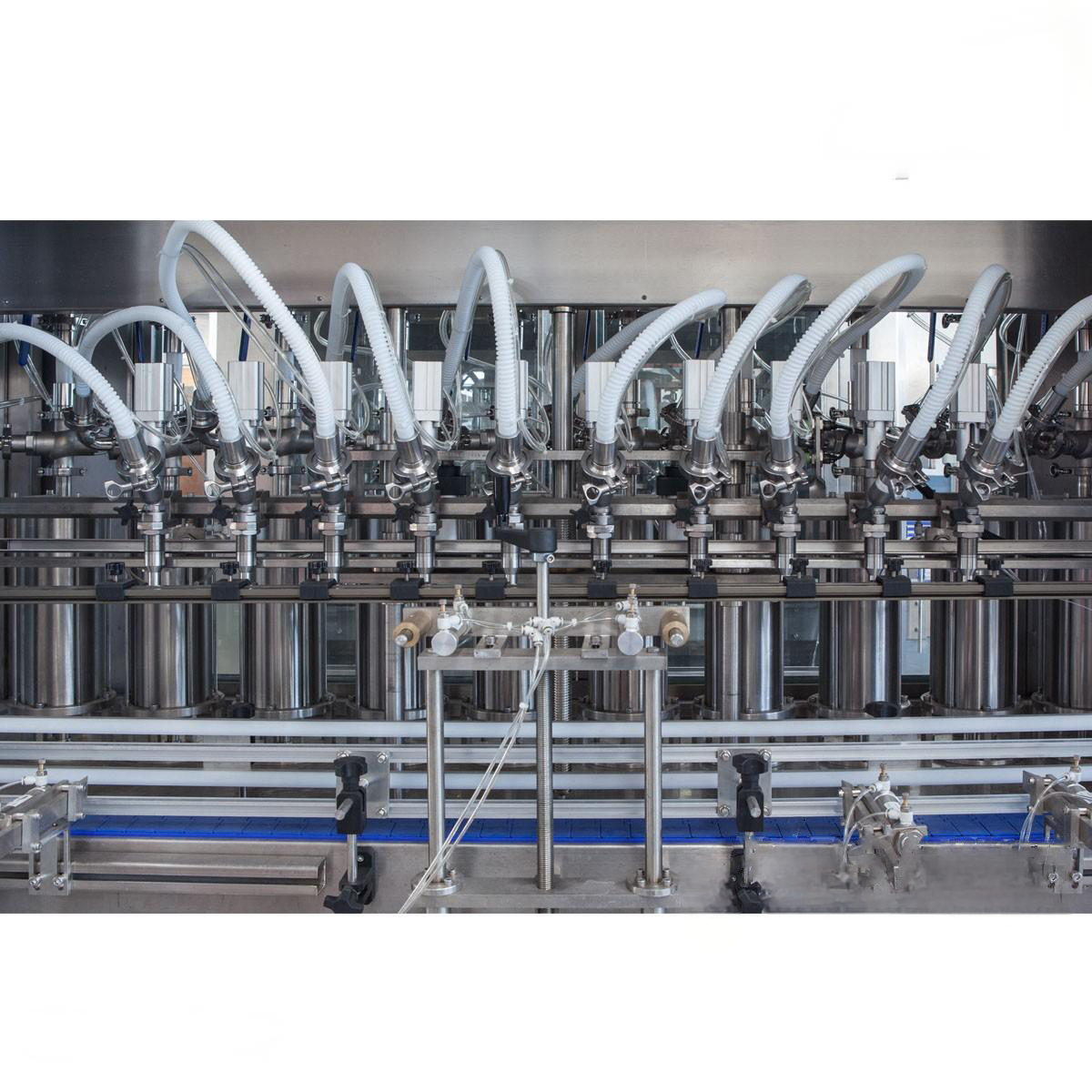

Detailed Photos

<1> Suitable material: Oil, jams, daily chemicals, and something that very viscous.
<2> PLC control :This filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action.

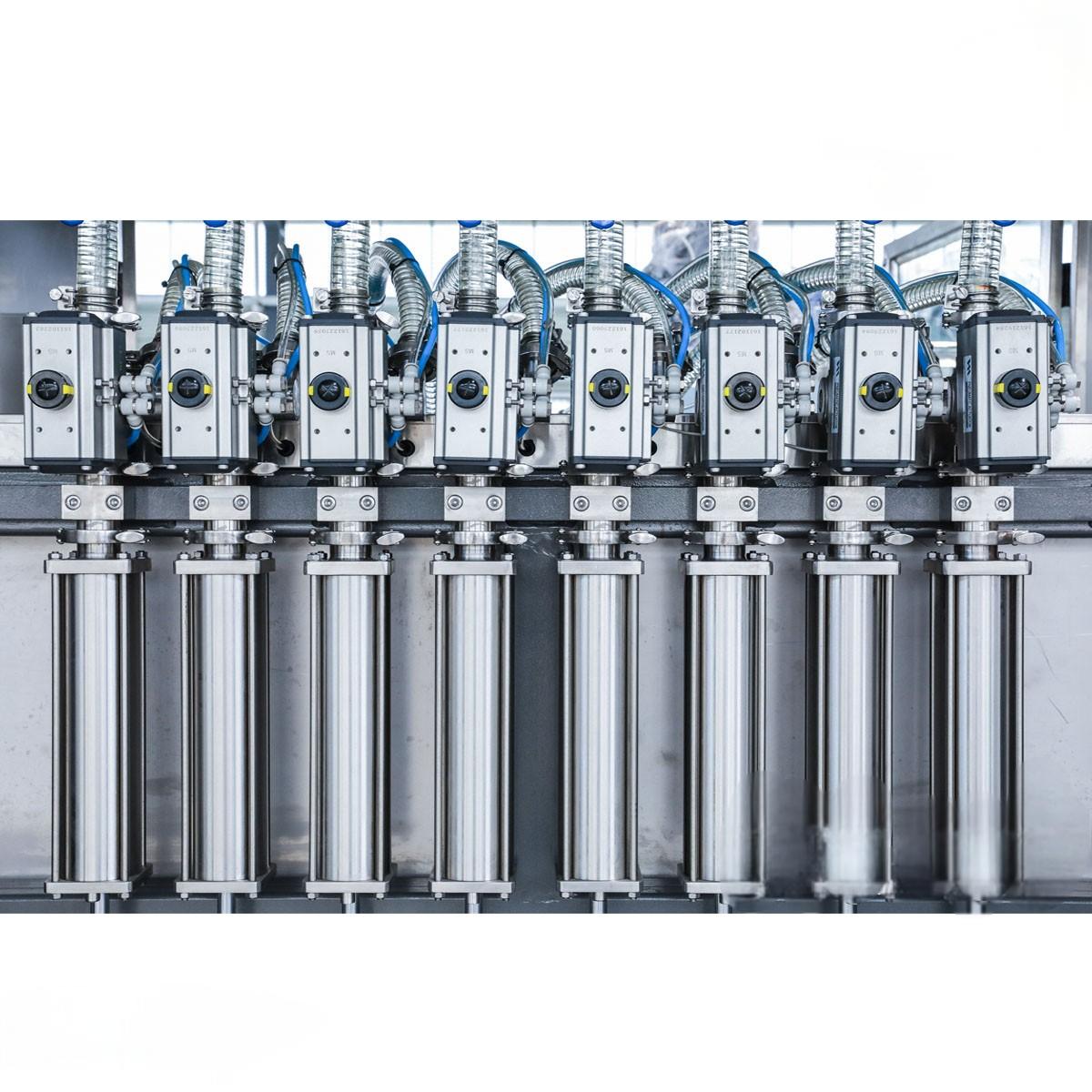

<3> Accurate measurement: adopt servo control system, ensure the piston can always reaches constant position.
<4> Anti drop function :When close to target filling capacity can be applied to realize speed slow filling, prevent the liquid spill bottle mouth cause pollution.
<5> Convenient adjustment: replacement filling specifications only in touch screen can be changed in parameters, and all filling first change in position, fine-tuning dose it in touch screen adjustment.
