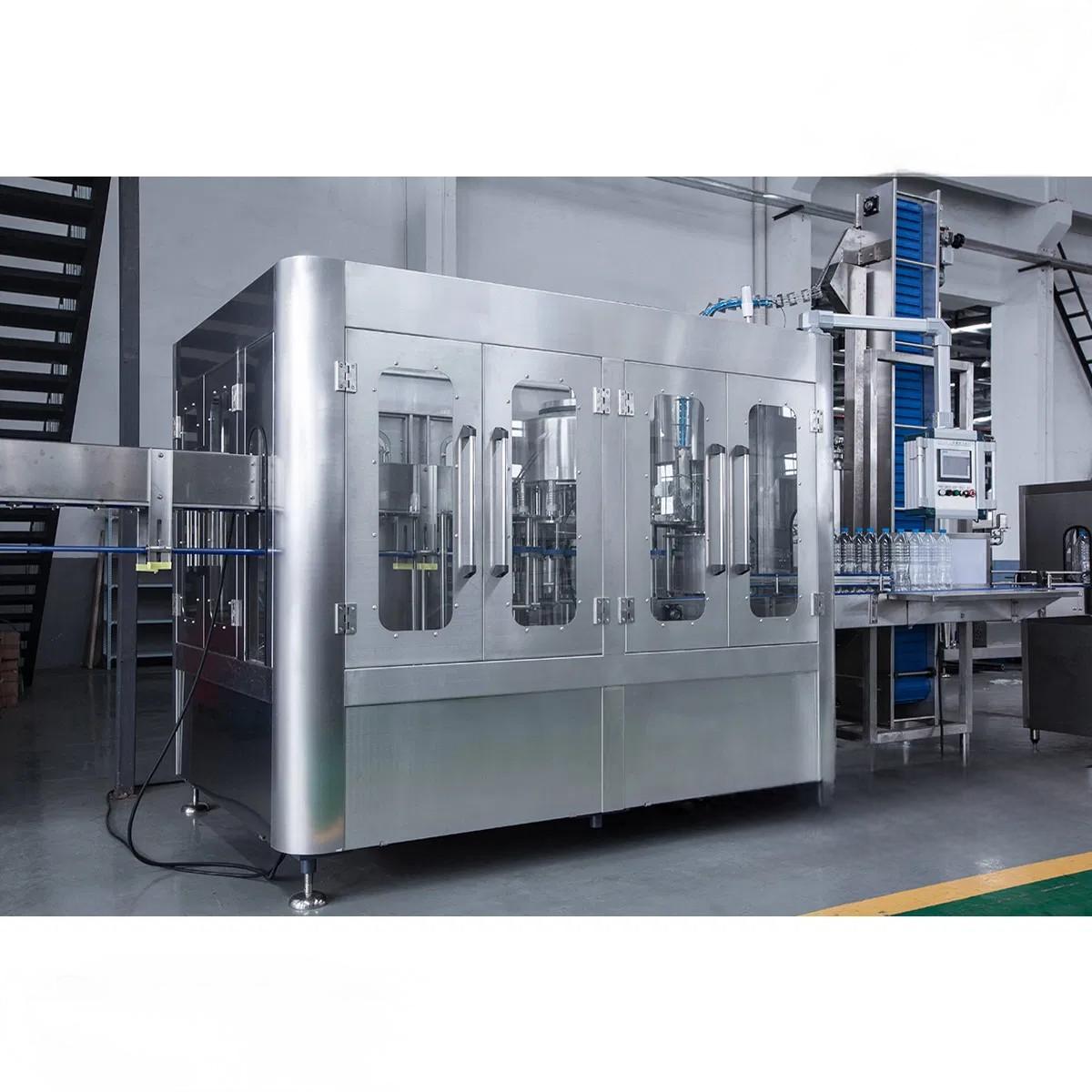

Automatic Pet Glass Bottle Liquid Pure Drinking Mineral Water Bottling Machine / Carbonated Flavored Soft Drink Juice Filling Labeling Packing Plant
*We supply complete solution for the water filling plant ,including Water treatment system / Washing filling capping machine / Code sprayer / Automatic labeling machine / Automatic packing machine / Automatic Palletizer system
| Technical parameter :Drinking water filling machine |
|
|
|
|
|
|
| Model | CGF8-8-3 | CGF14-12-4 | CGF18-18-6 | CGF24-24-6 | CGF32-32-8 | CGF40-40-10 |
| Capacity(for 500ml) | 2000 | 3000-4000 | 6000-8000 | 8000-12000 | 13000-15000 | 16000-18000 |
| Suitable bottle shapes | PET circular or square |
|
|
|
|
|
| Bottle diameter(mm) | Dia50-Dia115mm |
|
|
|
|
|
| Bottle height (mm) | 160-320mm |
|
|
|
|
|
| Compressor air | 0.3-0.7Mpa |
|
|
|
|
|
| Washing meidium | Aseptic water |
|
|
|
|
|
| Rinsing pressure | >0.06Mpa <0.2Mpa |
|
|
|
|
|
| Application | Drinking water filling machine |
|
|
|
|
|
| Total power (KW) | 4.4kw | 4.4kw | 4.4kw | 5.2kw | 6.2kw | 7.8kw |
| Overall dimensions | 2.3*1.9m | 2.5*1.9m | 2.8*2.15m | 3.1*2.5m | 3.8*2.8m | 4.5*3.3m |
| Height | 2.3m | 2.5m | 2.5m | 2.5m | 2.5m | 2.6m |
| Weight(kg) | 2500kg | 3200kg | 4000kg | 4500kg | 6500kg | 8000kg |
Different filling capacities for choice
8-8-3 Bottle Water Filling Line Capacity:1000-2000 bottles per hour.
14-12-5 Bottle Water Filling Line Capacity:2000-3000 bottles per hour.
16-12-6 Bottle Water Filling Line Capacity:4000-6000 bottles per hour.
18-18-6 Bottle Water Filling Line Capacity:6000-8000 bottles per hour.
24-24-8 Bottle Water Filling Line Capacity:10000-12000 bottles per hour.
32-32-10 Bottle Water Filling Line Capacity:12000-15000 bottles per hour.
40-40-12 Bottle Water Filling Line Capacity:20000-24000 bottles per hour
Main Features
*Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
* Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
* The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
*High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
*Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
*Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
