Fruit tray forming

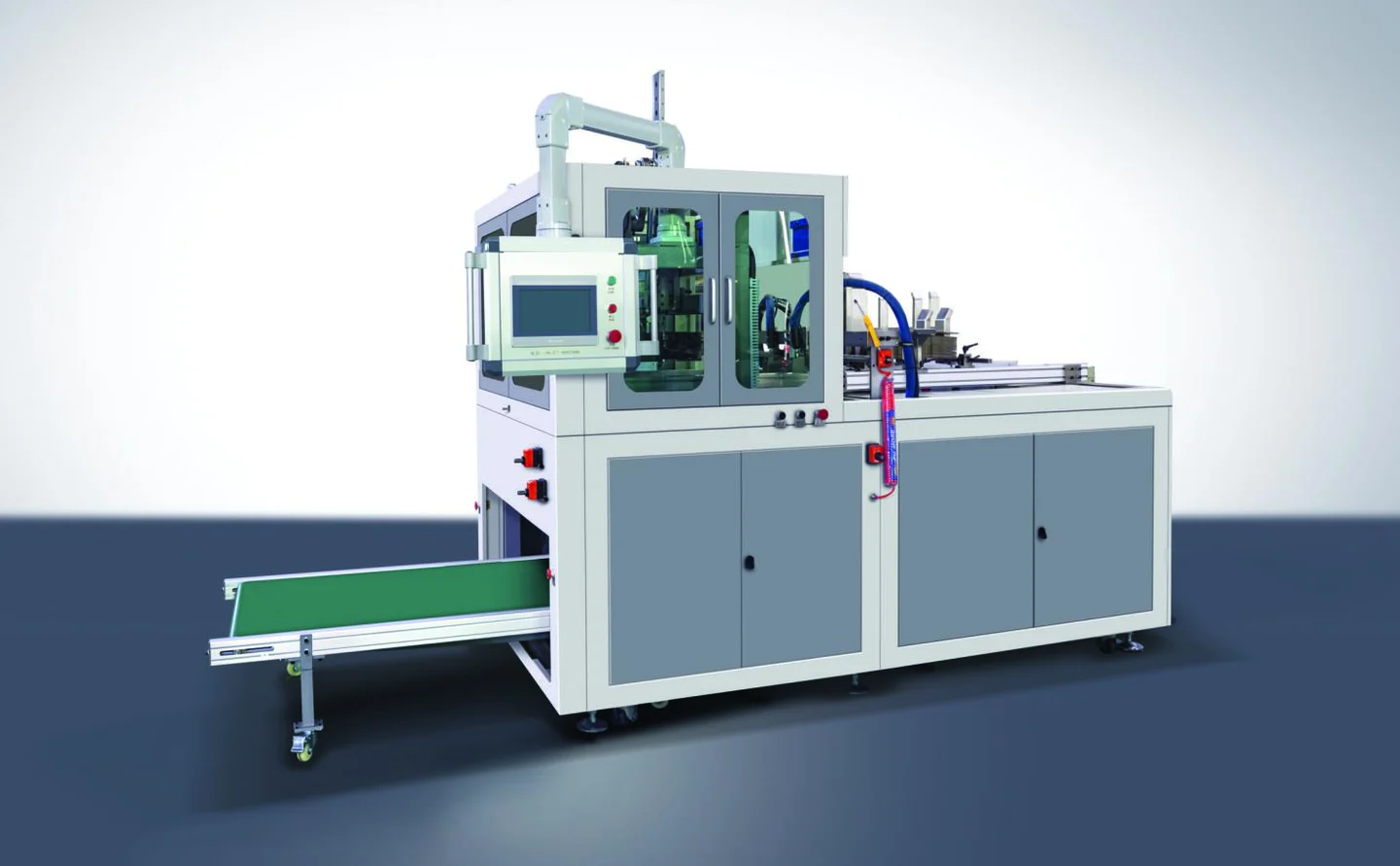

XD-08
Automatic cardboard fruit-box forming with a catalogue speed range of 2,000–3,500 boxes per hour and board thickness up to 7 mm.
*Catalogue specification; box sample confirmation required.
MACHINE FEATURES
The XD-08 is designed for the packaging operations described below. Compare its working dimensions and features with your box drawing and production requirements.
A mechanical feed system moves cardboard blanks into position for forming. Check the guides and feed arrangement against the blank drawing, then run samples to assess alignment and handling of the material.
The controller coordinates movement through the machine; models listing photoelectric tracking also use sensors to track the process. Check the feed and forming sequence during a sample run, including how the machine handles a misplaced blank.
Hot-melt adhesive joins the folded sections of the box. The glue locations need to match the blank and joint design. Review the adhesive requirement, nozzle arrangement and finished joints using your production material.
The catalogue lists fault diagnosis through the machine controls. During the equipment review, ask to see the messages available for the supplied configuration and the operator steps for checking and restarting the machine.
TECHNICAL DATA
Confirm the machine configuration against your carton sample, required output and site power supply.
Confirm your configuration| Catalogue speed | 2,000–3,500 boxes / hour |
|---|---|
| Cardboard thickness | 1.5–7 mm |
| Finished box length | 220–680 mm |
| Finished box width | 220–680 mm |
| Finished box height | 100–250 mm |
| Catalogue electrical supply | 380 V / 50 Hz |
| Total power | 12 kW total; approx. 5 kW in normal production |
| Air pressure | 0.6–0.7 MPa |
| Machine net weight | Approx. 1,600 kg |
| Machine dimensions | 3,900 × 1,630 × 2,550 mm |
Figures are from the 2025 Xunding catalogue. Actual output depends on box design, cardboard and configuration. Confirm the current specification, electrical supply and box sample before ordering.
BOX REQUIREMENTS
Share the drawing, dimensions and board specification.
The catalogue range is a starting point, not a fit guarantee.
Finished dimensions, blank drawing and a photo of the assembled box.
Cardboard type and thickness, and any printing or coating requirements.
Required boxes per hour, shift pattern and available space on the packing line.
Installation country, site electrical supply and commissioning requirements.
Review the box drawing and material against this model’s catalogue specification.
Box design examplePRODUCE PACKAGING

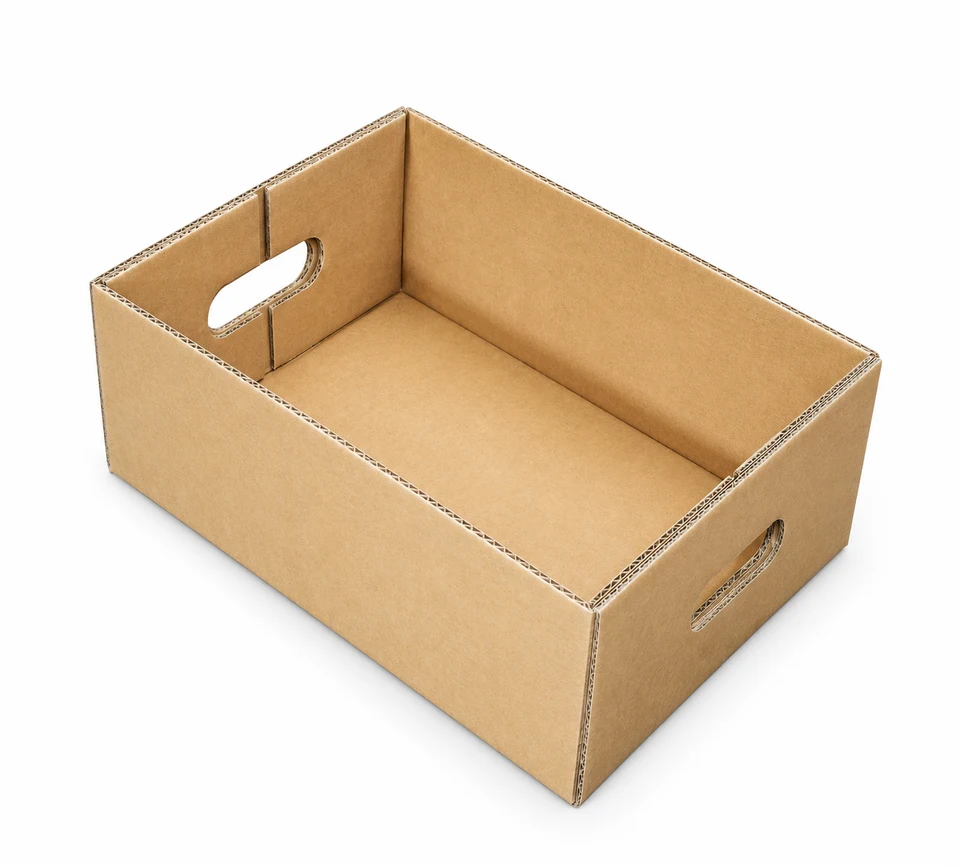

An open tray keeps produce accessible during packing. The samples include printed and plain board, with different wall heights and hand-hole positions. The crop name on the print does not determine the forming process.
View box requirements & models
Box design examplePRODUCE PACKAGING

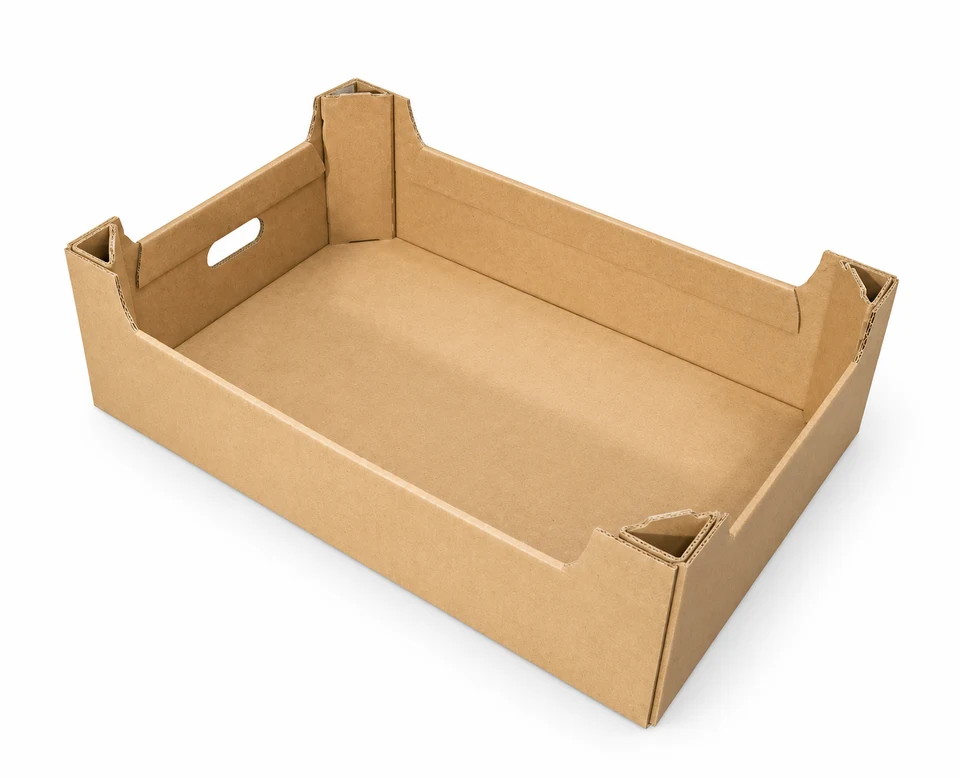

Folded corner sections change how a tray is formed and joined. The sample collection shows several corner arrangements. A forming setup needs to match the folds and overlaps, even when two trays share the same outside dimensions.
View box requirements & modelsFREQUENTLY ASKED QUESTIONS
Send the finished-box dimensions, the flat blank drawing and cardboard thickness. Xunding must confirm the exact box structure and configuration; dimensions alone do not establish compatibility.
The catalogue output is 2,000–3,500 boxes per hour. Production speed depends on the carton design, material and machine settings. Send a box sample to discuss the expected output.
The catalogue lists 380 V / 50 Hz. Tell us your site voltage, phase and frequency before requesting a quote. Suitability and any required changes need confirmation for the installation site.
Include the XD-08 model reference, box dimensions, board thickness, required output and destination. If you do not have a final drawing, describe the packaging you are working on.
REQUEST A QUOTATION
Tell us your box dimensions, cardboard and production target.
